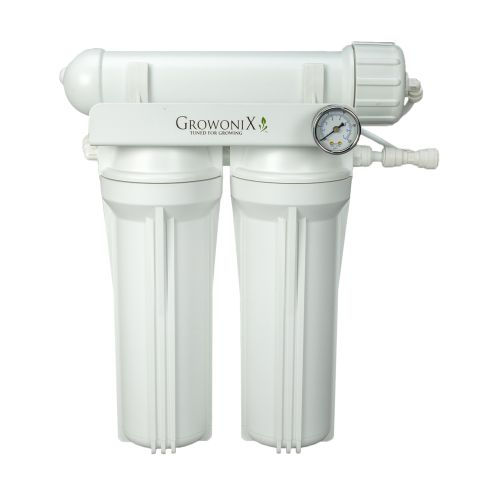

EX200 High Flow Reverse Osmosis System
Flows 8.5 gallons per hour of pure RO water, with an astounding 2:1 ratio
Click here for EX200 Replacement Filters & Membrane Kit
Designed to flow 8.5 gallons per hour of pure RO water, with an astounding 2:1 ratio for high flow rates and water savings never before seen in a package so affordable and durable. Utilizing the most efficient membrane technology in the world, built with dual o-ring fittings, and equipped with a steel pressure gauge.
The GrowoniX EX200 Systems Feature:
High Flow Cold Water membrane
2:1 system ratios - The most efficient in the industry
Electrogalvanized powder coated steel brackets
One Coconut Carbon filter rated for 8,000 gallons chlorine reduction
High Flow pleated sediment filter, completely washable and reusable
Auto Shutoff Valve-for positive automatic shutoff when using a float valve
No additional pre-filters needed
Carbon capacity—8,000 total gallons of chlorine or chloramine removal, or 3,000 gallons of RO water at a 2:1 ratio.
*Chloramine removal requires a KDF85 carbon fiber.
For those who demand even more performance, the EX200 can be used with a booster pump, raising the system pressure to 80psi, increasing the gallon per day output.
For those with tap water that contains chloramines, the EX200 can be upgraded with a KDF/CAT carbon filter.
Accessories for all eX100-400 GPD Systems:
- BP-1530 booster pump (raises input pressure to 80psi)
- KDF85 Catalytic Carbon FilterFloat valve
- UV-1530 Ultraviolet Filter
- Float valve
| Product Name | EX200 High Flow Reverse Osmosis System | |||
|---|---|---|---|---|
| Permeate Flow GPD | 200 | |||
| Permeate Flow GPH | 8 | |||
| Min Feed Flow GPM | 0.42 | |||
| Feed Water Pressure Range | 40 - 80 psi | |||
| Feed Water Temp Range | 40 - 113 °F | |||
| System Ratio | 2 to 1 | |||
| Nominal Salt Rejection % | 96 | |||
| Feed Input Connection | 3/8" RO Quick Connect | |||
| Permeate Flow Connection | 1/4" RO Tube | |||
| Waste Line Connection | 1/4" RO Tube | |||
| Sediment Filter | SF-2510-SP | |||
| Carbon Capacity Total Gallons | 8,000 | |||
| Pre Filter Size | 2510 | |||
| Membrane | GXM-200-HF | |||
| Membrane Flush Valve | No | |||
| Membrane Material | Polyamide (PA) | |||
| Membrane Quantity | 1 | |||
| Pump | None | |||
| Pump Operating Pressure Range | 150 PSI Max | |||
| Booster Pump Upgrade | BP-1530 | |||
| Ambient Temperature Range | 40 - 113 °F | |||
| Max Feed Water TDS | <2000 | |||
| pH Continuous | 2 - 11 Ph | |||
| Chlorine Tolerance | <0.1 mg/L | |||
| Max Hardness gpg | 0 | |||
| Max SDI Rating SDI | <3 | |||
| Max Turbidity NTU | 1 | |||
| Dimensions L x W x H inch | 14 x 7 x 15 | |||
| Frame | Powder Coated Steel Bracket | |||
| Gauges | 1-1/2" Dry 100 Psi Gauge | |||
| Casters | None | |||
| Filter Housing Material | Polypropylene | |||
| Membrane Housing Material | Polypropylene | |||
| Water Treatment Type | Reverse Osmosis | |||
| Replacement Filters | EX200 Replacement Filters and Membrane Kit
*Default filters shipped with the product All other filters listed will fit and are available as substitutions or upgrades. |
GrowOnix Product Documents
GrowoniX EX200: Overview

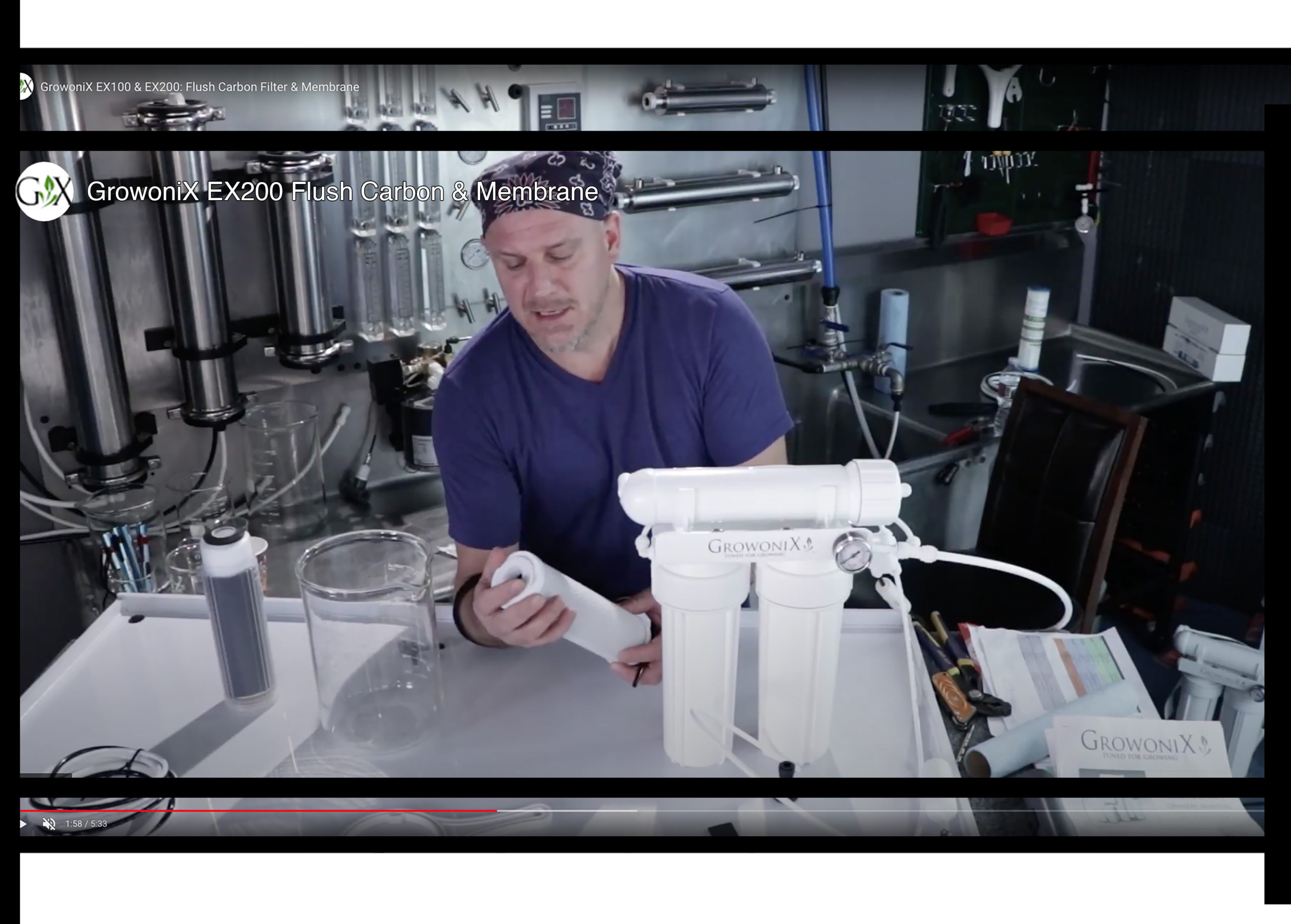

GrowoniX EX200: Flush Carbon Filter & Membrane

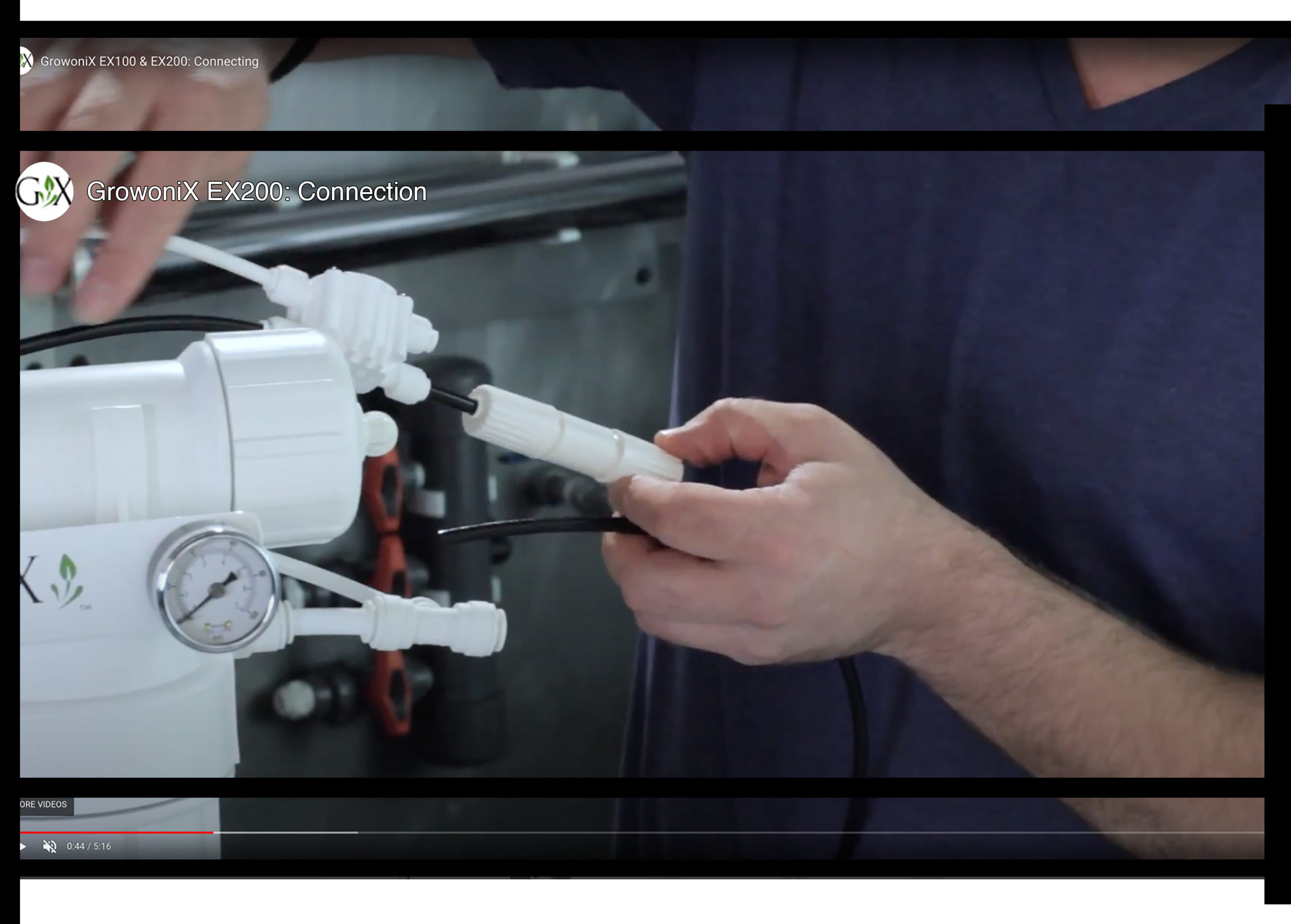

GrowoniX EX200: Connecting
EX200 Replacement Filters and Membrane Kit
|
SEDIMENT |
CARBON |
MEMBRANE
|
*Default filters shipped with the product
All other filters listed will fit and are available as substitutions or upgrades.
